After Throttle Body Cleaning How to Fix High Idle with the Autel MK808S
Cleaning the throttle body is a proven way to restore engine performance and fuel efficiency. However, many DIYers face an unexpected issue afterward: a persistent high idle or unstable RPMs, often stuck between 1,500 and 2,500 RPM, that won’t self-correct.
Some suggest disconnecting the negative battery terminal to reset the system. But on modern Electronic Throttle Control (ETC) systems, this won’t work. A battery disconnect only clears basic ECU trouble codes; it does not erase specific intake adaptation values. To return the idle to its proper baseline (typically 750~800 RPM), you need a scanner with bi-directional control or special functions to perform a proper TPS (Throttle Position Sensor) Reset and Idle Relearn procedure.
Why Does Throttle Body Cleaning Cause High Idle?
To understand the RPM spike, you need to know how the ECU manages airflow. As mileage increases, carbon buildup narrows the intake passage. To compensate and maintain idle airflow, the ECU automatically increases the throttle plate angle and locks in this adaptive value.
When you manually clean the throttle body, the passage opens up instantly. However, the ECU retains its old adaptive memory, still commanding a wider plate angle than necessary. This excessive airflow throws off the air-fuel ratio, resulting in a high, unstable, or hunting idle.
The Fix: Step-by-Step Reset with the Autel MK808S

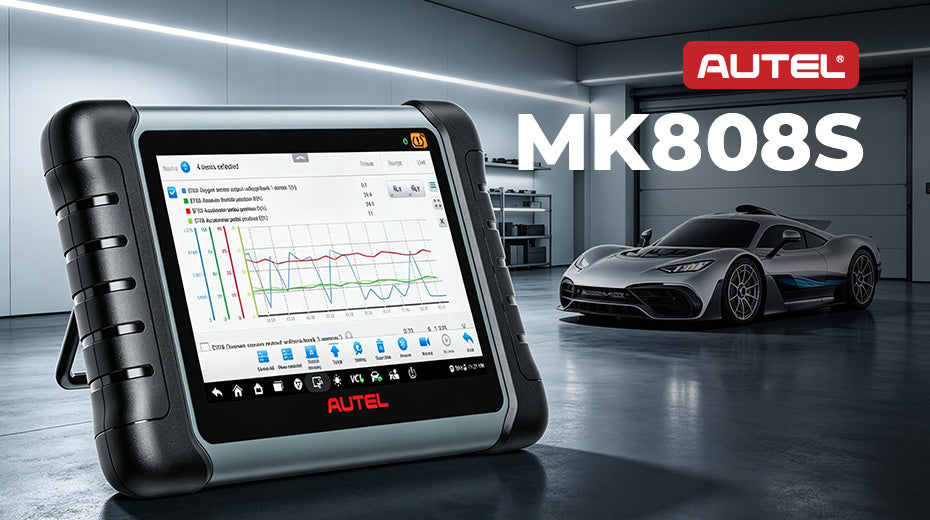

To solve this, the vehicle needs to dump the old TPS (Throttle Position Sensor) learned values and let the ECM remap intake data from scratch. Basic handheld code readers don’t have the software depth to drive these low-level module adaptations, but the Autel MK808S packs full special-function support for these precise maintenance calibrations.
And, the MK808S runs a Rockchip RK3566 processor on Android 11.0, a major speed boost over previous generations, getting you into the control unit, and through the matching procedure faster.
Step 1: Auto VIN Identification
Plug the Autel MK808S into the vehicle’s OBDII port and switch the ignition on. No need to punch in a long VIN manually, built-in Auto VIN tech automatically scans and pulls the make, model, and year, loading the matching OEM-grade diagnostic database right away. That ensures every command you send downstream is spot-on.
Step 2: Clear TPS Learned Values
Navigate to the Service menu, select Throttle Adaptation / Reset. The MK808S opens bi-directional communication directly with the ECM/PCM. Follow the on-screen pre-conditions (engine off, ignition in ON, voltage stable, coolant temp in range, etc.), then execute the clear command. This forces the computer to zero out the TPS baseline position.
Step 3: Perform Idle Relearn Procedure
Once the old values are wiped, the vehicle needs to complete an idle relearn. On some makes, you can trigger an automated relearn command straight from the scan tool. On others (Honda, for example), keep the tool connected, start the engine, let it warm to normal operating temp, and follow the guided steps (hold RPM at specified conditions, then release throttle). This lets the ECM capture and lock in the correct idle airflow with a clean throttle plate and no carbon obstruction.
During the process, pull up live data to graph or table-monitor engine RPM and TPS voltage in real time. As the reset and relearn complete, you’ll watch the RPM steadily drop below 1,000 and settle into a stable, factory-standard idle (typically 750~800 RPM).
Beyond the Fix: Long-Term Maintenance with the MK808S
Fixing a high idle is just one example of how a pro-grade scan tool saves you time and pricey shop bills. The Autel MK808S packs 28+ core special reset functions, an all-in-one maintenance solution for serious DIYers and working techs.
If your intake service goes beyond the throttle body to include cleaning the MAF sensor, or if your garage routine covers ABS brake bleeding, oil reset, steering angle sensor (SAS) calibration, or battery management system (BMS) registration, this tool handles the adaptive matching without breaking a sweat.
Plus, as modern vehicles add stricter security, the MK808S comes ready with FCA AutoAuth and Renault Security Gateway compatibility built in. That means you can unlock SGW modules on newer vehicles, and run advanced diagnostics and adjustments without restrictions.
No more paying a shop premium for electronic sensor resets after a simple mechanical cleaning. With the Autel MK808S, you handle complex electronic relearns right in your own driveway, and keep your vehicle running smooth after every service.
