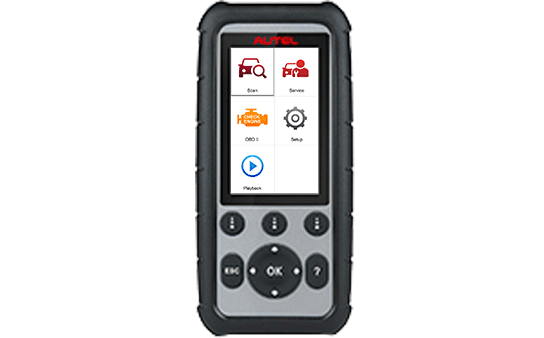

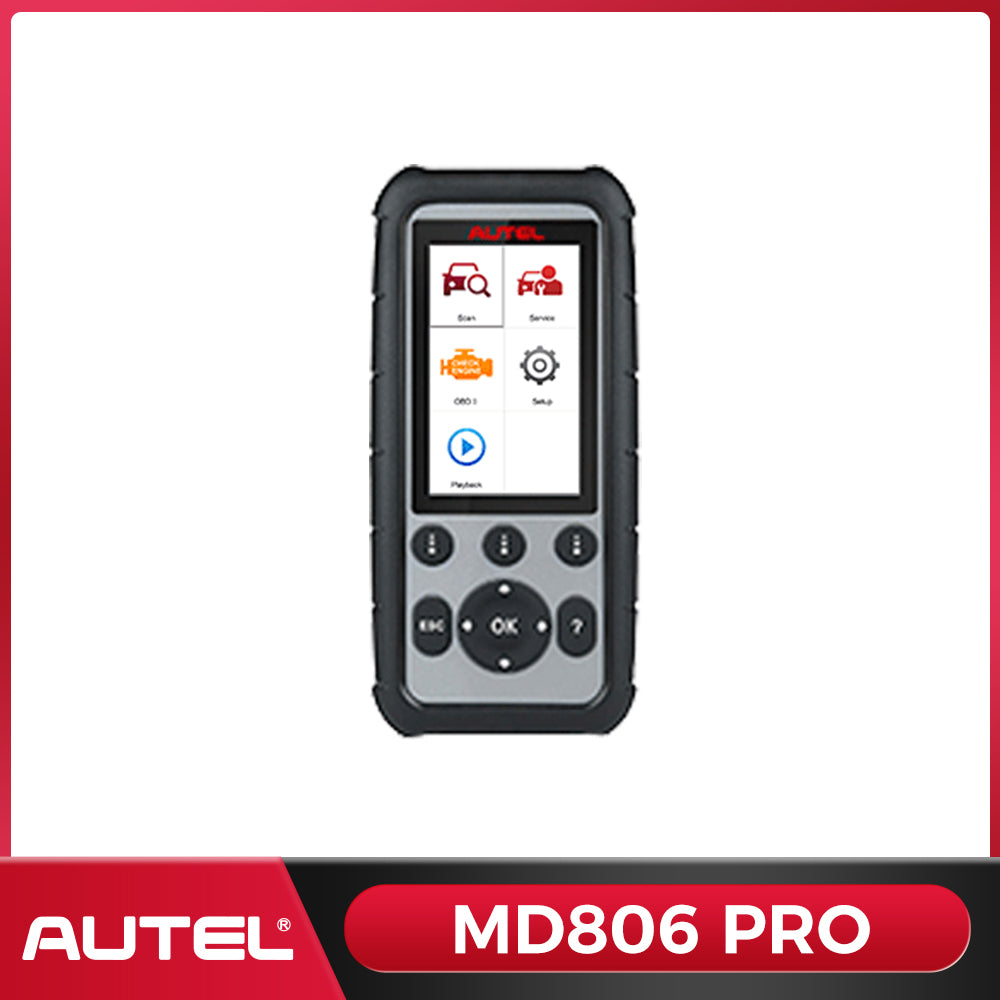

Autel MD806Pro is a hand-held entry-level car diagnostic tool from Autel. It supports full OBD2 function, full-system diagnosis, and 7 special functions (Oil Reset, SAS Reset, BMS Reset, DPF Reset, EPB Service, Adjust A/F, Throttle Adaptation), which can meet the common basic car diagnosis needs of car repair shop owners, professional mechanics, and DIYer enthusiasts.
£166.00
£166.00
PayPal Visa Mastercard American Express pay later with klarna
free shipping by UPS, DHL or FedEx
MaxiDiag MD806 Pro

MaxiDiag MD806 Pro

£166.00
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro
MaxiDiag MD806 Pro

MaxiDiag MD806 Pro

£166.00
System: Autel MD806 Pro Full system

    Autel MaxiDiag MD806 have two version to choose, MD806 is 4 system, MD806 Pro is All system.
    MD806 have three function more than MD802, MD806 have DPF/ BMS/ SAS Reset

    Support Read/Clear Codes and Live Data functions for ALL systems.
    Read and clear trouble codes, control, and test BMS/Oil Reset/ SRS/EPB/DPF systems.
    Perform O2 monitor, on-board monitor, I/M readiness and component testing.
    Global OBD II coverage for the U.S., Asian and European makes and models.
    All OBD II protocols, all 10 test modes, and enhanced OBD II mode 6 support.
    Print diagnostic reports via PC. Software lifetime free to update.

    ProcessorARM® Thumb® Processor running at up to 400 MHz
    Memory32MB, 166 MHz
    Display4.0 inch LCD with 800x480 resolution
    Connectivity

    Mini USB: 2.0


    Micro SD Card (16GB)

    Power Consumption1.7 W
    Operating Temperature-10°C to 60°C (14°F to 140°F)
    Storage Temperature-20°C to 70°C (-4°F to 158°F)
    Operating Humidity5% - 95% non-condensing
    HousingStrong plastic housing with protective rubber boot
    Dimensions202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
    Weight313 g (0.69 lb.)
    Product MD806 MD808 MD806 PRO MD808 PRO
    System Coverage 4 Systems-ABS,SRS,Engine,Transmission All Systems
    Weight(lb) 0.69
    Display 4-inch LCD 800*480 dpi
    Length\Width\Height 8.35*3.62*1.4
    Base Functions √
    Read Codes √
    Clear Codes √
    Live data √
    Freeze Frame √
    I/M Readiness STAKUS IM √
    O2 Sensor TEST √
    On-board Moniitor Test √
    EVAP Stystem Test EVAP √
    Component Test √
    Retrieve Vehicle Information √
    TURN OFF MIL √
    DTC lookup √
    Color&Graphical Display √
    Special Functions EPB Reset/Oil Reset/SAS Reset/BMS Reset/DPF Regeneration
    Throttle Matching and Adjust A/F: Only MD806,MD806 Pro Has ABS Reset: Only MD806 Pro Has
    Autel MD802 (4/all systems) not have functions
    • SAS reset/Steering Angle Learning, DPF Regeneration/DPF functions, BMS RESET/Battery Registration and reset - Compare md808 series.
    • In addition to the above three, there is no Throttle Matching and Adjust A/F - Compare md806 series
    Prints data via PC √
    Software upgrade Lifetime Free
    Supports Muti-Languages English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek, Simplified Chinese

    • MaxiDiag MD806 & MD806 Pro User Manual EN

      Download

    MD806 PRO Accessories
    Quick Reference Guide
    Main cable
    TF card
    Carry case
    Mini USB Cable


    MD806 Accessories
    Carry case
    OBDII Cable

  • Description

    • Autel MaxiDiag MD806 have two version to choose, MD806 is 4 system, MD806 Pro is All system.
    MD806 have three function more than MD802, MD806 have DPF/ BMS/ SAS Reset

    Support Read/Clear Codes and Live Data functions for ALL systems.
    Read and clear trouble codes, control, and test BMS/Oil Reset/ SRS/EPB/DPF systems.
    Perform O2 monitor, on-board monitor, I/M readiness and component testing.
    Global OBD II coverage for the U.S., Asian and European makes and models.
    All OBD II protocols, all 10 test modes, and enhanced OBD II mode 6 support.
    Print diagnostic reports via PC. Software lifetime free to update.

  • Specifications
    • ProcessorARM® Thumb® Processor running at up to 400 MHz
    Memory32MB, 166 MHz
    Display4.0 inch LCD with 800x480 resolution
    Connectivity

    Mini USB: 2.0


    Micro SD Card (16GB)

    Power Consumption1.7 W
    Operating Temperature-10°C to 60°C (14°F to 140°F)
    Storage Temperature-20°C to 70°C (-4°F to 158°F)
    Operating Humidity5% - 95% non-condensing
    HousingStrong plastic housing with protective rubber boot
    Dimensions202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
    Weight313 g (0.69 lb.)
  • Video
  • Comparison
    • Product MD806 MD808 MD806 PRO MD808 PRO
    System Coverage 4 Systems-ABS,SRS,Engine,Transmission All Systems
    Weight(lb) 0.69
    Display 4-inch LCD 800*480 dpi
    Length\Width\Height 8.35*3.62*1.4
    Base Functions √
    Read Codes √
    Clear Codes √
    Live data √
    Freeze Frame √
    I/M Readiness STAKUS IM √
    O2 Sensor TEST √
    On-board Moniitor Test √
    EVAP Stystem Test EVAP √
    Component Test √
    Retrieve Vehicle Information √
    TURN OFF MIL √
    DTC lookup √
    Color&Graphical Display √
    Special Functions EPB Reset/Oil Reset/SAS Reset/BMS Reset/DPF Regeneration
    Throttle Matching and Adjust A/F: Only MD806,MD806 Pro Has ABS Reset: Only MD806 Pro Has
    Autel MD802 (4/all systems) not have functions
    • SAS reset/Steering Angle Learning, DPF Regeneration/DPF functions, BMS RESET/Battery Registration and reset - Compare md808 series.
    • In addition to the above three, there is no Throttle Matching and Adjust A/F - Compare md806 series
    Prints data via PC √
    Software upgrade Lifetime Free
    Supports Muti-Languages English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek, Simplified Chinese
  • Downloads

    • MaxiDiag MD806 & MD806 Pro User Manual EN

      Download
  • Accessories

    • MD806 PRO Accessories
    Quick Reference Guide
    Main cable
    TF card
    Carry case
    Mini USB Cable


    MD806 Accessories
    Carry case
    OBDII Cable
